描述

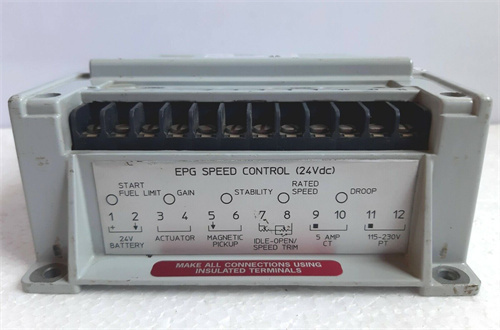

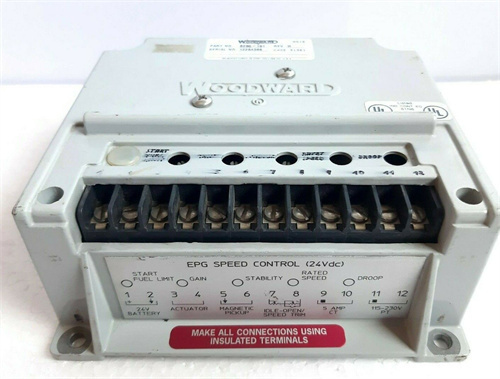

WOODWARD 8290-184是一款电驱动调速器控制单元，并非PLC。以下是其产品详情：
基本信息
产品型号：8290-184。
所属系列：EPG电驱动调速器系列。
适用发动机类型：柴油或燃气轮机原动机。
电气特性
工作电压：系统电池电压为24VDC，直流电压范围为20-32VDC，使用5A电池充电器。
功率消耗：高达95瓦。
频率范围：需在3000-6000Hz范围内使用。
输入信号：磁阻传感器输入最小1.5Vrms。
物理特性
安装方式：可安装在与其配合工作的发动机上，建议使用12AWG和14AWG电线（根据长度而定）进行安装。
环境适应性
工作温度：-40°F至167°F（约-40°C至75°C）。
功能特点
调速功能：用于柴油发动机的精确等时调速控制，特别适用于没有机械驱动或液压油供应的原动机，且具有低质量、低摩擦燃油连杆的情况。
启动燃油限制：具备启动燃油限制功能，有助于控制涡轮机启动时的烟雾。
可选斜坡发生器：可与可选的斜坡发生器兼容，实现速度设置之间的平稳过渡。
安全保护：配备10A慢熔保险丝，确保在不同运行需求下的安全稳定。符合欧盟指令，安全性和可靠性高。
WOODWARD 8290-184 is an electric drive governor control unit,not a PLC.Here are the product details:
Basic Information
Product Model:8290-184.
Series:EPG electric drive governor series.
Applicable engine type:diesel or gas turbine prime mover.
Electrical Characteristics
Operating Voltage:System battery voltage is 24VDC,DC voltage range is 20-32VDC,using 5A battery charger.
Power Consumption:Up to 95 Watts.
Frequency Range:Need to be used in the range of 3000-6000Hz.
Input Signal:Reluctance sensor input minimum 1.5Vrms.
Physical Characteristics
Installation:Can be installed on the engine with which it works,and 12AWG and 14AWG wires(depending on the length)are recommended for installation.
Environmental adaptability
Operating temperature:-40°F to 167°F(approximately-40°C to 75°C).
Features
Speedcontrol function:Used for precise isochronous speed control of diesel engines,especially suitable for prime movers without mechanical drive or hydraulic oil supply,and with low-mass,low-friction fuel connecting rods.
Start fuel limitation:With start fuel limitation function,it helps to control smoke when the turbine starts.
Optional ramp generator:Compatible with optional ramp generator to achieve smooth transition between speed settings.
Safety protection:Equipped with 10A slow-blow fuse to ensure safety and stability under different operating requirements.Comply with EU directives,high safety and reliability.
