描述
easYgen-3200-5P10的主要特性和规格
让我们根据easYgen 3000系列的典型特性，来解析一下型号名称及其含义：

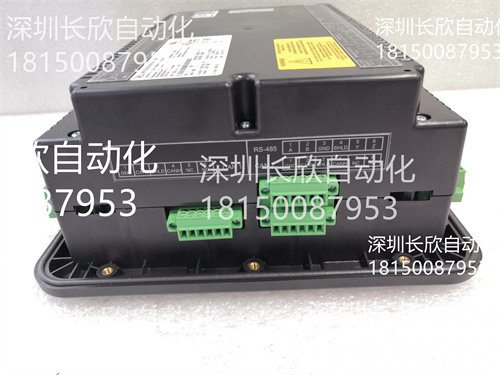

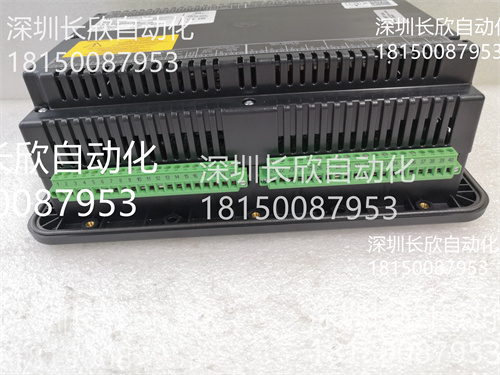

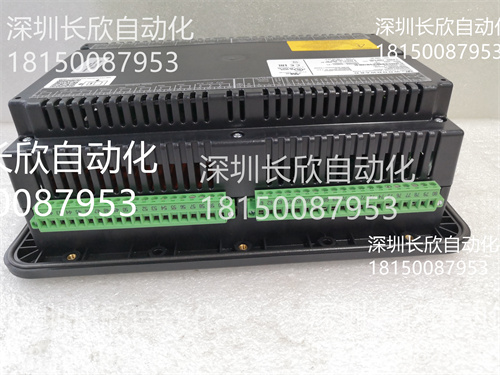

easYgen-3200：
这表示它是一款前面板安装的设备，内置图形彩色LCD显示屏。这使得用户可以直接进行交互、配置和监控，而无需外部PC进行基本操作。
它配有软键，可实现直观的导航和操作。
-5：这表示额定电流互感器(CT)二次输入为5安培(A)。这是工业电力应用中常见的CT额定值。该控制器采用真有效值电压和电流感应技术，即使存在谐波也能实现精确测量。
-P10（或-P1）：这表示特定的“Package 1”功能集。在easYgen 3000系列中，“P1”型号通常针对复杂的并联应用进行了优化，通常包含：
冗余以太网通信：对于高可用性系统至关重要。
LS-5连接：用于与其他Woodward设备进行高级负载共享和同步。
标准I/O集：提供一组基本的可配置离散量输入/输出和模拟量I/O。
注意：套件2（“P2”）型号通常提供扩展的板载I/O、三相母线电压测量功能以及用于其他协议或I/O的接口扩展卡插槽。P10可能表示P1套件的特定版本或次要变体。
easYgen 3000系列（3200-5P10共享）的常规功能：
全面的发电机组控制和保护：
发动机控制：管理发动机启停、起动控制和保护。兼容各种发动机类型（柴油、汽油），并支持通过CAN总线（SAE-J1939、CANopen）与发动机ECU直接通信。
发电机和主电源保护：全面的电气保护功能，包括过流、欠压/过压、欠频/过频、逆功率和不平衡保护。
断路器控制：控制发电机断路器(GCB)和主电源断路器(MCB)，并具有滑差频率/相位匹配同步等功能，可实现无缝切换。
高级并联功能：
多机组运行：能够在对等网络中控制和管理多达32台发电机组。
负载分配：支持并联发电机组之间精确的有功功率(kW)和无功功率(kVAr)负载分配。
负载相关启动/停止(LDSS)：根据负载需求、服务时间或其他优先级自动启动/停止发电机组，从而优化燃油消耗和维护。
灵活的电源管理：
运行模式：提供自动、停止、手动和测试（负载/空载）模式。
负载切换：实现平稳的负载切换（开/闭切换、互换、软加载/卸载、市电并联运行）。
功率控制：实现精确的功率（kW）、千乏（kVAr）、电压、频率和功率因数控制，包括基载、调峰和输入/输出功能。
连接和接口：
多种通信端口：包括以太网(Modbus TCP)、RS-485(Modbus RTU)、RS-232和USB。这使其能够轻松集成到SCADA系统、楼宇管理系统(BMS)和远程监控中。
多语言支持：人机界面支持多种语言（英语、德语、西班牙语、法语、意大利语、葡萄牙语、日语、中文、俄语、土耳其语、波兰语、斯洛伐克语、芬兰语、瑞典语）。
坚固耐用的设计：
电源：采用12/24 VDC（8至40 VDC）供电。
环境适应性：设计适用于宽工作温度范围（通常为-20°C至70°C，部分型号可延伸至-40°C）和高湿度环境。
外壳：塑料外壳，用于前面板嵌入式安装，前面板通常符合IP66（螺钉紧固）或IP54（夹具紧固）标准，后面板符合IP20标准。
可配置逻辑(LogicsManager™)：提供可编程逻辑功能，通常可减少对外部PLC的需求。还包括可配置的PID控制器。
Key Features and Specifications of the easYgen-3200-5P10
Let’s break down the model designation and what it implies based on typical easYgen 3000 series features:
easYgen-3200:
This indicates it’s a front-panel mounted unit with a built-in graphical color LCD display.This allows for direct user interaction,configuration,and monitoring without needing an external PC for basic operations.
It comes with soft keys for intuitive navigation and operation.
-5:This signifies the rated current transformer(CT)secondary input of 5 Amperes(A).This is a common CT rating for industrial power applications.The controller uses true RMS voltage and current sensing for accurate measurements,even with harmonics present.
-P10(or-P1):This indicates a specific”Package 1″feature set.In the easYgen 3000 series,”P1″models are generally optimized for complex paralleling applications and typically include:
Redundant Ethernet communication:Crucial for high-availability systems.
LS-5 connectivity:For advanced load sharing and synchronization with other Woodward devices.
Standard I/O set:Provides a foundational set of configurable discrete inputs/outputs and analog I/Os.
Note:Package 2(“P2”)models usually offer expanded onboard I/O,3-phase busbar voltage measurement capabilities,and an interface expansion card slot for additional protocols or I/O.The P10 likely denotes a specific revision or minor variant of the P1 package.
General Capabilities of the easYgen 3000 Series(which the 3200-5P10 shares):
Comprehensive Genset Control&Protection:
Engine Control:Manages engine start/stop,crank control,and protections.Compatible with various engine types(diesel,gas)and supports direct communication with engine ECUs via CAN bus(SAE-J1939,CANopen).
Generator&Mains Protection:Extensive electrical protection functions including overcurrent,under/over voltage,under/over frequency,reverse power,and unbalance.
Circuit Breaker Control:Controls Generator Circuit Breaker(GCB)and Mains Circuit Breaker(MCB)with features like slip frequency/phase matching synchronization for seamless transfers.
Advanced Paralleling Functionality:
Multi-Unit Operation:Capable of controlling and managing up to 32 generator sets in a peer-to-peer network.
Load Sharing:Supports accurate real(kW)and reactive(kVAr)load sharing among paralleled gensets.
Load-Dependent Start/Stop(LDSS):Optimizes fuel consumption and maintenance by automatically starting/stopping gensets based on load demand,service hours,or other priorities.
Flexible Power Management:
Operating Modes:Offers Auto,Stop,Manual,and Test(Load/No Load)modes.
Load Transfer:Facilitates smooth load transfers(open/closed transition,interchange,soft loading/unloading,mains parallel operations).
Power Control:Enables precise kW,kVAr,voltage,frequency,and power factor control,including baseload,peak shaving,and import/export capabilities.
Connectivity and Interface:
Multiple Communication Ports:Includes Ethernet(Modbus TCP),RS-485(Modbus RTU),RS-232,and USB.This allows for easy integration into SCADA systems,building management systems(BMS),and remote monitoring.
Multi-lingual Support:The HMI supports several languages(English,German,Spanish,French,Italian,Portuguese,Japanese,Chinese,Russian,Turkish,Polish,Slovakian,Finnish,Swedish).
Robust Design:
Power Supply:Operates on 12/24 VDC(8 to 40 VDC).
Environmental Resilience:Designed for wide operating temperatures(typically-20°C to 70°C,with variants extending to-40°C)and high humidity.
Housing:Plastic housing for front panel flush mounting,typically meeting IP66(screw fastening)or IP54(clamp fastening)standards on the front,and IP20 on the rear.
Configurable Logic(LogicsManager™):Provides programmable logic functionality,often reducing the need for an external PLC.Also includes configurable PID controllers.
