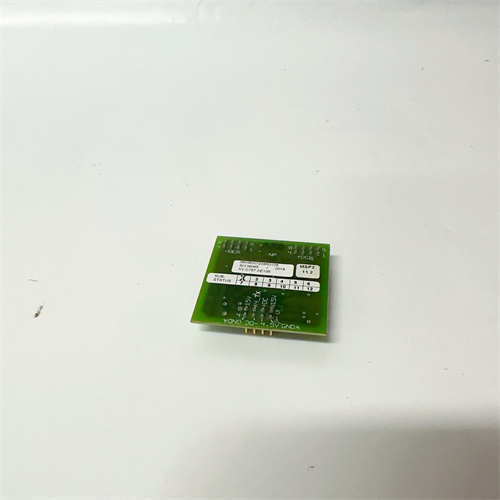

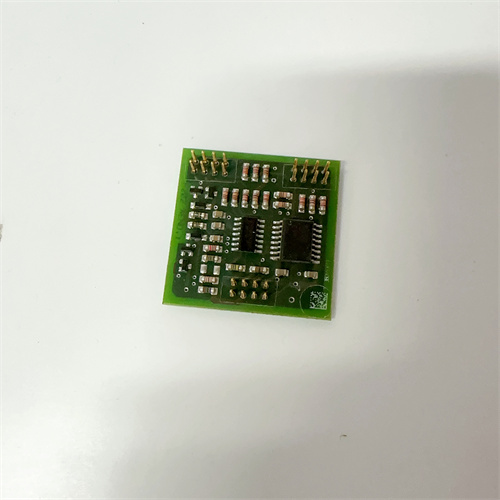

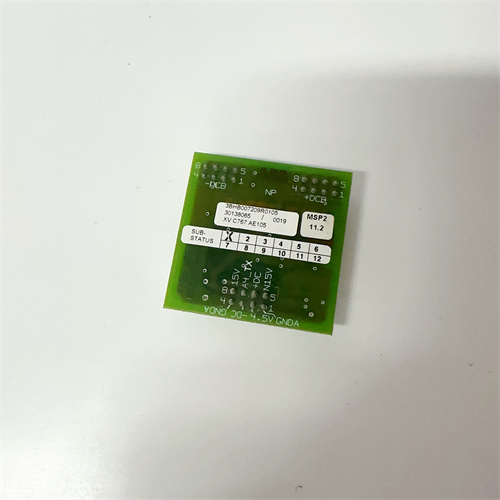

XVC767AE105 3BHB007209R0105产品详情
核心功能
XVC767AE105 3BHB007209R0105是ABB专为工业自动化和机器人技术设计的驱动电源模块，其核心功能包括：
高效能源转换：将输入电源高效转换为伺服电机或其他工业设备所需的稳定电源，确保设备稳定运行。
稳定输出：减少电气噪声和干扰，保护连接设备免受电气波动影响，保障系统可靠性。
保护功能：内置过流、过压、欠压和过热保护，确保电源供应的安全性和可靠性。
紧凑设计：采用紧凑结构，适用于空间有限的工业机柜或机器人控制器，便于集成。
易于集成：支持标准接口和连接方式，可与其他工业自动化组件无缝集成。
长寿命与低维护：设计用于长时间运行，具备较长使用寿命和较低维护需求。
高可靠性：采用高质量组件和严格生产工艺，能在恶劣工业环境中稳定运行。
全球认证：通过UL、CE等国际认证，满足全球市场需求。
技术参数
接口与通信：
支持ControlST V07.00.00C或更高版本作为人机界面（HMI），实现直观控制、监控和配置。
配备六个以太网端口（五个位于前面板，一个位于模块底部），支持网络通信和数据交换。
提供RS-485等通讯接口，支持报警功能。
内存与存储：
配备4GB DDR3-1333 SDRAM内存，支持高效数据管理。
包含NVSRAM（非易失性静态随机存取存储器），用于存储非易失性程序变量和累加器。
驱动芯片设计：可能采用IR2130等驱动芯片，控制功率管导通和关断顺序，实现电机正反转控制，并提供过电压保护和逻辑保护电路。
应用场景
XVC767AE105 3BHB007209R0105适用于需要高精度电源管理和可靠运行的工业场景，包括：
工业自动化生产线：为机器人、数控机床等设备提供稳定电源支持。
机器人技术：满足机器人控制器对电源的高精度和可靠性需求。
伺服电机驱动系统：确保电机在复杂工况下的稳定运行。
产品优势
高效稳定：通过高效能源转换和稳定输出设计，保障设备长时间稳定运行。
安全可靠：内置多重保护功能，降低系统故障风险。
灵活集成：支持多种接口和通信协议，便于与其他工业设备协同工作。
全球适用：通过国际认证，适用于全球不同市场的工业应用需求。
XVC767AE105 3BHB007209R0105 Product Details
Core Functions
XVC767AE105 3BHB007209R0105 is a drive power module designed by ABB for industrial automation and robotics.Its core functions include:
Efficient energy conversion:Efficiently convert the input power into the stable power required by the servo motor or other industrial equipment to ensure stable operation of the equipment.
Stable output:Reduce electrical noise and interference,protect the connected equipment from electrical fluctuations,and ensure system reliability.
Protection function:Built-in overcurrent,overvoltage,undervoltage and overheating protection to ensure the safety and reliability of power supply.
Compact design:The compact structure is suitable for industrial cabinets or robot controllers with limited space for easy integration.
Easy to integrate:Supports standard interfaces and connection methods,and can be seamlessly integrated with other industrial automation components.
Long life and low maintenance:Designed for long-term operation,with a long service life and low maintenance requirements.
High reliability:Using high-quality components and strict production processes,it can operate stably in harsh industrial environments.
Global certification:UL,CE and other international certifications to meet global market needs.
Technical parameters
Interface and communication:
Support ControlST V07.00.00C or higher as the human-machine interface(HMI)for intuitive control,monitoring and configuration.
Equipped with six Ethernet ports(five on the front panel and one on the bottom of the module)to support network communication and data exchange.
Provide RS-485 and other communication interfaces to support alarm functions.
Memory and storage:
Equipped with 4GB DDR3-1333 SDRAM memory to support efficient data management.
Contains NVSRAM(non-volatile static random access memory)for storing non-volatile program variables and accumulators.
Driver chip design:Driver chips such as IR2130 may be used to control the power tube conduction and shutdown sequence,realize motor forward and reverse control,and provide overvoltage protection and logic protection circuits.
Application scenarios
XVC767AE105 3BHB007209R0105 is suitable for industrial scenarios that require high-precision power management and reliable operation,including:
Industrial automation production line:Provide stable power support for robots,CNC machine tools and other equipment.
Robotics:Meet the high-precision and reliability requirements of robot controllers for power supply.
Servo motor drive system:Ensure the stable operation of the motor under complex working conditions.
Product advantages
Efficient and stable:Through efficient energy conversion and stable output design,the equipment can be ensured to operate stably for a long time.
Safe and reliable:Built-in multiple protection functions to reduce the risk of system failure.
Flexible integration:Supports multiple interfaces and communication protocols,which is convenient for working with other industrial equipment.
Global applicability:Passed international certification and suitable for industrial application needs in different markets around the world.
