描述

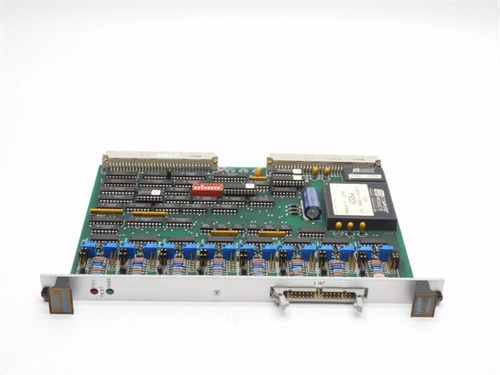

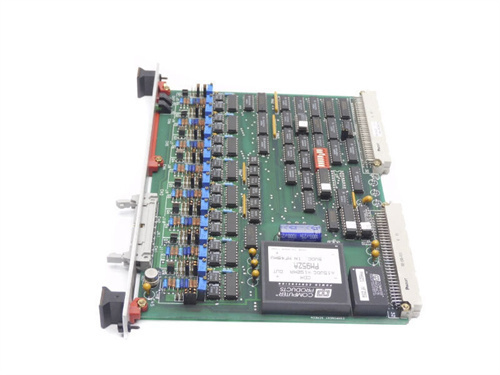

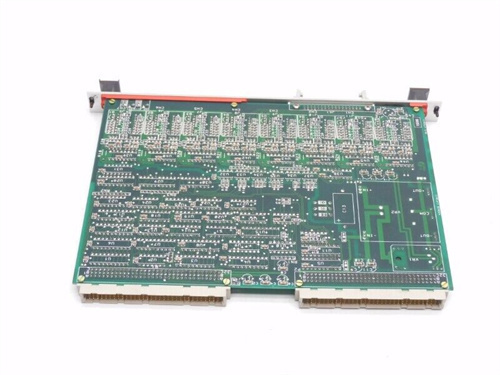

XYCOM XVME-530产品详情
一、核心功能与特性
多通道模拟输出能力：
XVME-530具备16个独立的数字/模拟输出通道，支持0-10 V、±5 V或±10 V的电压范围输出，以及4至20 mA的电流输出（XVME-531/2型号），满足工业控制中多种信号输出需求。
高精度与隔离设计：
输出通道具备12位分辨率，总误差限制在±0.5 LSB（输出电压）和±0.66 LSB（输出电流）范围内，确保信号输出的高精度。同时，500伏光学隔离设计（XVME-531/2型号）有效防止电气干扰，提升系统稳定性。
灵活配置与扩展性：
作为VME总线模块，支持与多种工业控制设备集成，用户可根据具体应用需求灵活配置通道参数，并通过VME总线扩展系统功能。
二、技术参数
制造商：XYCOM
型号：XVME-530（基础型号）/XVME-531/2（增强隔离与电流输出型号）
产品系列：PLC和控制器、指令系统
输出通道：16个独立通道
分辨率：12位
电压范围：0-10 V、±5 V或±10 V
电流输出：4至20 mA（XVME-531/2型号）
光学隔离：500伏（XVME-531/2型号）
总误差限制：±0.5 LSB（输出电压）、±0.66 LSB（输出电流）
接口类型：VME总线接口
工作环境温度：通常支持工业级温度范围（如-40℃至+85℃，具体以产品手册为准）
三、应用领域
工业自动化控制：
适用于制造生产线、机器人控制、过程监控等场景，通过多通道模拟输出实现精确的设备控制与信号调节。
测试与测量系统：
支持高精度信号输出，适用于需要模拟信号激励的测试与测量设备，如传感器校准、信号发生器等。
科研与实验平台：
提供灵活的信号输出配置，满足科研实验中复杂信号模拟的需求，如物理实验、电子电路测试等。
XYCOM XVME-530 Product Details
I.Core Functions and Features
Multi-channel analog output capability:
XVME-530 has 16 independent digital/analog output channels,supporting voltage range output of 0-10 V,±5 V or±10 V,and current output of 4 to 20 mA(XVME-531/2 models),meeting various signal output requirements in industrial control.
High-precision and isolation design:
The output channel has 12-bit resolution,and the total error is limited to±0.5 LSB(output voltage)and±0.66 LSB(output current),ensuring high accuracy of signal output.At the same time,the 500-volt optical isolation design(XVME-531/2 models)effectively prevents electrical interference and improves system stability.
Flexible configuration and scalability:
As a VME bus module,it supports integration with a variety of industrial control equipment.Users can flexibly configure channel parameters according to specific application requirements and expand system functions through the VME bus.
2.Technical parameters
Manufacturer:XYCOM
Model:XVME-530(basic model)/XVME-531/2(enhanced isolation and current output model)
Product series:PLC and controller,instruction system
Output channels:16 independent channels
Resolution:12 bits
Voltage range:0-10 V,±5 V or±10 V
Current output:4 to 20 mA(XVME-531/2 model)
Optical isolation:500 volts(XVME-531/2 model)
Total error limit:±0.5 LSB(output voltage),±0.66 LSB(output current)
Interface type:VME bus interface
Working environment temperature:usually supports industrial temperature range(such as-40℃to+85℃,please refer to the product manual for details)
3.Application field
Industrial automation control:
Applicable to manufacturing production lines,robot control,process monitoring and other scenarios,and realizes precise equipment control and signal conditioning through multi-channel analog output.
Test and measurement system:
Supports high-precision signal output,suitable for test and measurement equipment that requires analog signal excitation,such as sensor calibration,signal generator,etc.
Scientific research and experimental platform:
Provides flexible signal output configuration to meet the needs of complex signal simulation in scientific research experiments,such as physical experiments,electronic circuit testing,etc.
