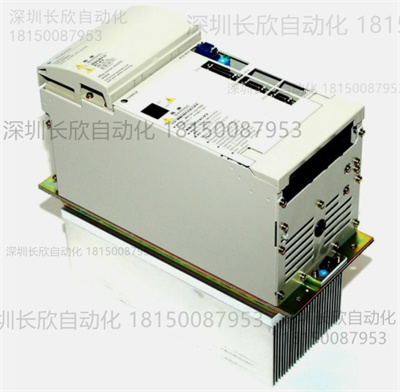

YASKAWA CIMR-M5A20150-XXXD产品详情解析
YASKAWA CIMR-M5A20150-XXXD是安川电机（YASKAWA）推出的高性能通用型变频器，属于Σ-7系列（Sigma-7），专为工业自动化设备、风机水泵、输送系统等应用设计。该产品以高精度控制、高可靠性、节能高效为核心特点，支持开环/闭环矢量控制、V/F控制等多种模式，功率范围覆盖15kW（20HP），适用于三相380-480V电源系统。以下从产品定位、技术规格、核心功能、应用场景及选型建议等方面展开详细说明：
一、产品定位与核心优势
定位
**CIMR-M5A20150-XXXD是安川Σ-7系列中的中高端变频器，定位为全功能工业驱动解决方案，可替代传统异步电机驱动器，支持同步电机、异步电机的高效控制，满足高精度速度/转矩控制需求。
设计特点：采用标准IP20防护等级（防尘，防滴水），适合室内控制柜安装；支持壁挂式或导轨式安装；内置LED显示屏+操作按键，支持本地参数设置与状态监控；可选配远程操作面板（OP-7）实现多机集中控制。
核心优势
高精度控制：支持开环矢量控制（SVC）、闭环矢量控制（FVC）、V/F控制，速度控制精度达±0.01%（闭环），转矩响应时间<5ms，适用于数控机床、纺织机械等高动态响应场景。
节能高效：采用IGBT三电平拓扑结构，效率≥98%（满载时）；支持自动节能模式（AES），可根据负载动态调整输出电压，降低电机损耗。
高可靠性设计：内置过流、过压、欠压、过热、过载、短路等15+种保护功能；采用独立风道散热，延长电解电容寿命（设计寿命10年以上）。
灵活通信：支持Modbus RTU、Profibus-DP、DeviceNet、EtherNet/IP、Profinet等主流工业协议，可无缝集成PLC、HMI、SCADA系统。
易用性：提供DriveWizard Plus软件，支持参数备份/恢复、波形监控、故障诊断；内置自学习功能，可自动识别电机参数，简化调试流程。
二、技术规格与硬件配置
1.基础参数
参数规格
型号CIMR-M5A20150-XXXD（“XXXD”为协议/功能扩展标识，如“-C”表示带CANopen）
功率范围15kW（20HP），适配电机额定电流32A（持续）
输入电压三相380-480V±10%（342-528V），50/60Hz±5%
输出电压三相0-输入电压（可调），频率范围0-590Hz
控制方式开环矢量（SVC）、闭环矢量（FVC）、V/F控制、过程闭环控制
防护等级IP20（符合IEC 60529）
工作温度-10℃~+50℃（导轨安装时需预留散热空间）
存储温度-25℃~+70℃
湿度5%-95%RH（无凝露）
振动符合IEC 60068-2-6（5-55Hz，1mm振幅）
冲击符合IEC 60068-2-27（15g，11ms半正弦波）
YASKAWA CIMR-M5A20150-XXXD Product Details
The YASKAWA CIMR-M5A20150-XXXD is a high-performance,general-purpose inverter from Yaskawa Electric Corporation(YASKAWA).It belongs to the Sigma-7 series and is designed for applications such as industrial automation equipment,fans and pumps,and conveying systems.This product features high-precision control,high reliability,and energy efficiency.It supports multiple modes,including open-loop/closed-loop vector control and V/F control.It covers a power range of 15kW(20HP)and is suitable for three-phase 380-480V power systems.The following provides a detailed description of the product’s positioning,technical specifications,core functions,application scenarios,and selection recommendations:
I.Product Positioning and Core Advantages
Positioning
The CIMR-M5A20150-XXXD is a mid-to-high-end inverter in the YaskawaΣ-7 series.Positioned as a full-featured industrial drive solution,it can replace traditional asynchronous motor drives,supporting efficient control of synchronous and asynchronous motors and meeting high-precision speed/torque control requirements.
Design Features:It features a standard IP20 protection rating(dustproof and drip-proof),making it suitable for indoor control cabinet installation.It can be wall-mounted or DIN-rail mounted.It features a built-in LED display and operation buttons,allowing for local parameter setting and status monitoring.An optional remote operation panel(OP-7)is available for centralized control of multiple units.
Core Advantages
High-Precision Control:Supports open-loop vector control(SVC),closed-loop vector control(FVC),and V/F control,with speed control accuracy reaching±0.01%(closed-loop)and a torque response time of<5ms,making it suitable for high-dynamic response scenarios such as CNC machine tools and textile machinery.
Energy-Saving and High-Efficiency:Utilizing a three-level IGBT topology,it achieves efficiency≥98%(at full load).It supports Automatic Energy Saving Mode(AES),which dynamically adjusts output voltage based on load to reduce motor losses.
High-Reliability Design:Features over 15 built-in protection functions,including overcurrent,overvoltage,undervoltage,overheating,overload,and short-circuit protection.Independent air ducts provide heat dissipation,extending the life of the electrolytic capacitors(designed for over 10 years).
Flexible Communication:Supports mainstream industrial protocols such as Modbus RTU,Profibus-DP,DeviceNet,EtherNet/IP,and Profinet,enabling seamless integration with PLC,HMI,and SCADA systems.Ease of use:DriveWizard Plus software is provided,supporting parameter backup/restore,waveform monitoring,and fault diagnosis.A built-in self-learning function automatically identifies motor parameters,simplifying the debugging process.II.Technical Specifications and Hardware Configuration
1.Basic Parameters
Parameters Specifications
Model CIMR-M5A20150-XXXD(“XXXD”indicates the protocol/function extension,e.g.,”-C”indicates CANopen)
Power Range 15kW(20HP),Applicable Motor Rated Current 32A(Continuous)
Input Voltage Three-Phase 380-480V±10%(342-528V),50/60Hz±5%
Output Voltage Three-Phase 0-Input Voltage(Adjustable),Frequency Range 0-590Hz
Control Modes Open-Loop Vector Control(SVC),Closed-Loop Vector Control(FVC),V/F Control,Process Closed-Loop Control
Protection Rating IP20(Compliant with IEC 60529)
Operating Temperature-10°C to+50°C(Radiator mounting requires sufficient space for heat dissipation)
Storage Temperature-25°C to+70°C
Humidity 5%-95%RH(non-condensing)
Vibration Compliant with IEC IEC 60068-2-6(5-55Hz,1mm amplitude)
Shock:Complies with IEC 60068-2-27(15g,11ms half-sine wave)
